Japanese Servo Motor 2.5 M Chain Stitch Mattress Making Machine

Name: Japanese Servo Motor 25 M Chain Stitch Mattress Making Machine
Brand: Yuxing
Price: 1 USD

Japanese Servo Motor 2.5 M Chain Stitch Mattress Making Machine Manufactures

Brand Name : Yuxing

Model Number : YXN-94-3C

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 20 SETS/MONTH

Delivery Time : 15 Days

Packaging Details : Export packing

Machine size : 5000*1600*2000 MM

Quilting width : 2400 MM

Rolling speed : 600-900 RPM

Weight : 5000 KG

Warranty : 12 Month

After-sales : Online video

Output : 10-200 M/H

Stitch : 2-8 MM

Contact Now

Japanese Servo Motor 2.5 M Chain Stitch Mattress Making Quilting Machine

Quilting Machines Function:

1. Adopt the advanced process design.

2. Needle bar and pressing block take the double rocker avoid the materials be soiled by lube.

3. High rigidity machine body,perfect protecting equipment and steady-going control system.

4. X,Y motors are driven by servo system, and principal axis takes frequency ports system.

5. Test the working state of all sensors and computer in real time.

6. Auto-stop system when the bottom or upper thread broke by infrared. Auto lift needle and adjust the speed by computer.

7. Auto faults tips for servo motor system and transducer,which is convenient to eliminate problems.

8. 360°quilting and limitless multi-span and independent quilting.

9. Steady running,high speed,low noise,very thick material with precise quilting.

10 .Ringing notice when start machine.

Specification:

Product Name	Computer Non-shuttle (chain stitch) Multi-needle Quilting Machine
Model	YXN-94-3C(2"+3"/3"+3")
Size(LWH)	500016002000mm
Weight	5000kg
Quilting width	2485mm
Needle bar space	50.8,76.2,(2"+3");76.2,76.2(3"+3")
Quilting thickness	8cm
Rolling speed	Max. 900r/min
Output	Max. 180m/hour
Needle type	#21-#24
X-axis movement	410mm
Needle space	25.4mm
Stitch	2-8mm
Rated voltage(AC)	380V/50HZ,/220V/60HZ
Power	6500 Watts

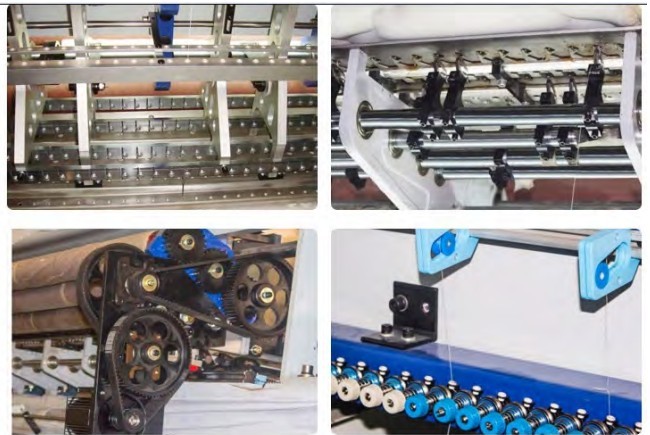

Japanese Servo Motor 2.5 M Chain Stitch Mattress Making Machine

Pattern
Japanese Servo Motor 2.5 M Chain Stitch Mattress Making Machine

Japanese Servo Motor 2.5 M Chain Stitch Mattress Making Machine
